Products List

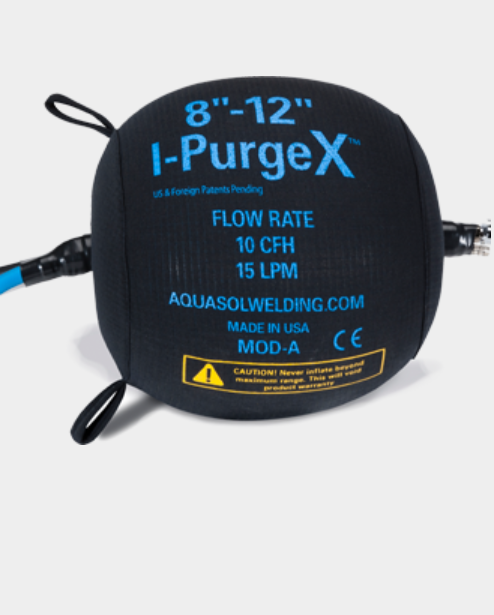

4-6"(102-152MM) I-PURGE®X DOUBLE PURGE BAG SYSTEM

8-16"(203-305MM) I-PURGE®X DOUBLE PURGE BAG SYSTEM

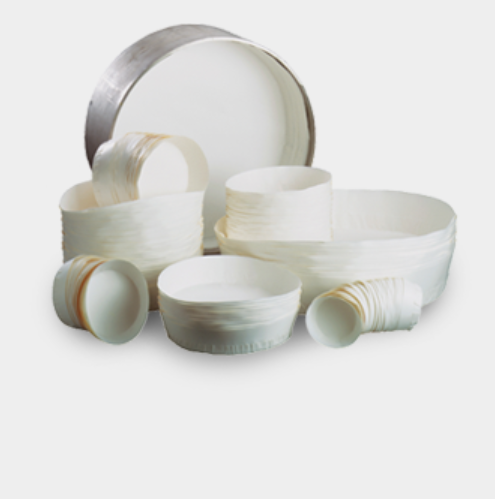

EZ PURGE® PRE-FORMED SELF-ADHESIVE WATER SOLUBLE PURGE DAMS

AQUASOL WATER SOLUBLE PAPER ROLL 9" x 165' (ASW-35/R-9)

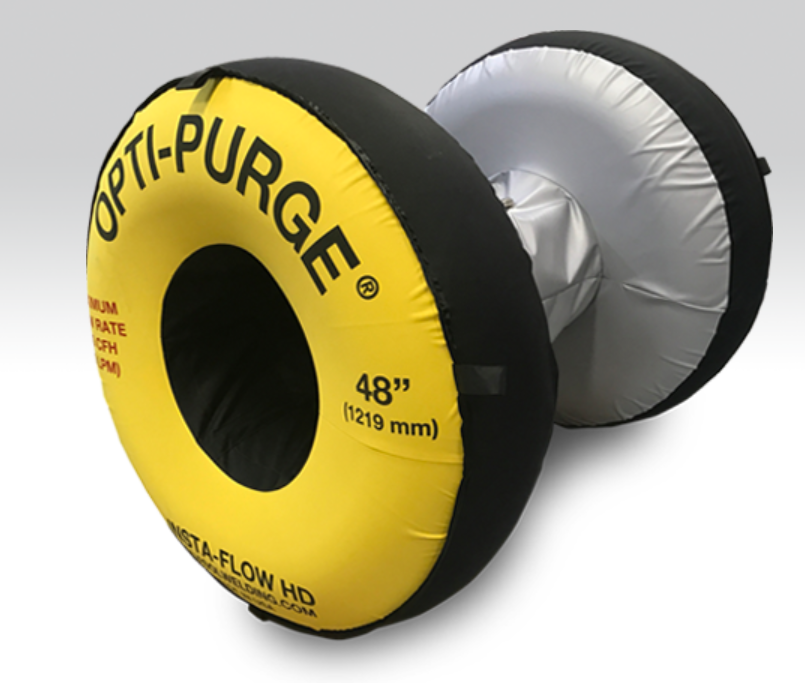

OPTI-PURGE® FAST INFLATION PURGE SYSTEM

High Heat Resistant Hollow Connector

• High heat resistant, durable exterior fabric can be exposed to temperatures up to 1004°F (540°C) to accommodate heat affected zone (HAZ)
• Supportive rods extend down length of hollow connector to maintain structural integrity
• Complete with luminescent indicator for accurate alignment with root gap

Proprietary Relief Valve

• Factory pre-set relief valves allow for precise flow rates while minimizing set-up time and reducing gas consumption
• Aids in maintenance of optimum seal on pipe wall
• Prevents risk of over inflation

Types & Sizes

Opti-Purge

Standard sizes of Opti-Purge range from 48″ (1219 mm) to 84″ (2133 mm).

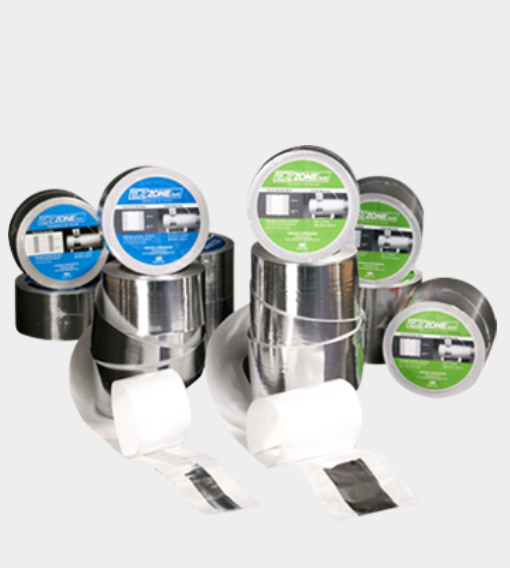

EZ ZONE® TAPE PURGE GAS RETAINING TAPE

Features and Benefits

Contaminant Free Weld

• EZ Zone Tape eliminates the worry of adhesive contaminating the weld area when sealing  the root gap between pipes because it is composed  of two outside adhesive sections, separated by an adhesive-free center “zone”
• Only the adhesive-free “zone” is placed over the weld, therefore the adhesive never comes in contact with the pipe as it is welded; creating a clean, contaminant-free weld
• The “Zone” acts as a centering guide, making correct placement of tape and ensuring no adhesive contamination
• Reduces pipe clean-up time and avoids costly x-rays

Flexible & Heat Resistant

• Malleable aluminum tape easily conform to a number of complex shapes and uneven surfaces including stainless steel and aluminum pipes
• Pressure-sensitive adhesive makes for easy application
• Adhesive portion of aluminum tape withstands temperatures up to 500°F (260°C)
• Aluminum foil portion of tape withstands temperatures up to 1100°F (593°C)

High Quality and Safe Components

• EZ Zone Tape is free of halogens including  fluoride, chloride and bromide as well as chlorofluorocarbon, increasingly important in today’s highly regulated safety environment

EZ Tape Fully Coated Aluminum Tape

PRODUCT	ITEM NO	DESCRIPTION	WIDTH		WIDTH OF THE ADHESIVE-FREE ZONE		LENGTH
						ENGLISH	METRIC	ENGLISH	METRIC	ENGLISH	METRIC
	EZ-ZT 2.5	EZ Zone Tape	2.5″	64 mm	1″	25 mm	75′	23 m
	EZ-ZT 4.0	EZ Zone Tape	4.0″	102 mm	2″	51 mm	75′	23 m

EZ TAPE® FULLY COATED ALUMINUM TAPE

Purge Gas Containment

• Center EZ Tape over the root gap around the entire circumference of the pipe
• Insert purge gas needle into root gap and ensure connection to gas line.
• Introduce noble gas and evacuate oxygen
• After reaching desired oxygen ppm level, start welding

Types & Sizes

EZ Tape Fully Coated Aluminum Tape

Product	Item No	Description	Width		Length
						English	Metric	English	Metric
	EZ-T 1.0	Fully Coated Aluminum	1.0″	25 mm	75′	23 m
	EZ-T 2.0	Fully Coated Aluminum	2.0″	51 mm	75′	23 m

FIBACK® FIBERGLASS WELD BACKING TAPE

How Fiback Works

Align

Align desired base metals with the required root gap. Center the fiberglass strip over the backside of the root gap.

Position

Position the fiberglass strip in a convex shape away from the backside of the weld area to contain the purge gas from the torch tip but avoid consuming the material.

Press

Press the adhesive sections of tape along the sides of the root gap to the base metal, continuing to center the fiberglass strip. Remember to peel the release liner from the aluminum tape while progressing along the weld joint. This procedure ensures the adhesive on the aluminum tape is free from debris and foreign matter.
After Fiback has been applied to the entire length of the metals being joined, press outer adhesive edges again to create an air tight seal between the tape and the base metal.

Weld

Begin welding the desired seam.

Types & Sizes

Fiback Fiberglass Weld Backing Tape

Heat Resistance

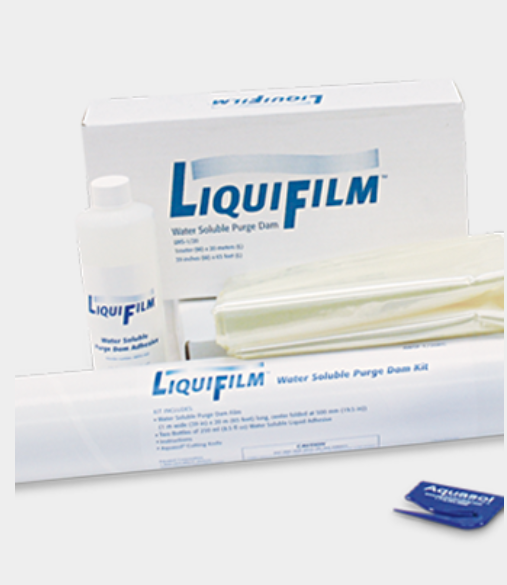

LIQUIFILM® WATER SOLUBLE PURGE FILM AND ADHESIVE

Liquifilm Water Soluble Purge Film and Adhesive

Product	Item No	Description	Dimensions		Case Pack
							English	Metric
	AWSF-1/2ORG	Liquifilm Water Soluble Film Kit	39″ x 65′	1 m x 20 m	12
	AWSF-1/2OB	Liquifilm Water Soluble Film Brick Format	39″ x 65′	1 m x 20 m	12
	AWSG-500	Liquifilm Water Soluble Adhesive	16 fl oz	500 ml/bottle	24
	AWSG-250	Liquifilm Water Soluble Adhesive	8 fl oz	250 ml/bottle	48

POM®- 100B HIGH PURITY WELDING APPLICATIONS

Bluetooth APP Enabled Operation

• Real-time Operation via Android, iOS and Windows App
• The POM®-100B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop).

Note

• Compatible with companion Apps available on Android, iOS and Windows
• Device MUST be equipped with BLE or purchased separately
• To save unlimited readings, POM®-100B MUST be connected to device

Unlimited Data Logging Capabilities in Real Time

With POM®-100B you will be able to create unlimited real time records of oxygen levels for critical welding applications

• The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
• Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
• The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv

Intelligent Color Notification System

• This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error.
• Eliminate guesswork as Alarms can be set to desired O2 PPM value.
• Acceptable oxygen levels can be customized to the user specifications.

Factory Calibrated and Certified

• The POM®-100B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
• Meets requirements specified by the National Institute of Standards and Technology

2 Point Calibration Model:

• Calibrates using ambient air and 99.999% Argon.

Types & Sizes

POM®-100B / POM®-5B KIT TYPES AND SIZES

POM®- 5B ULTRA HIGH PURITY WELDING APPLICATIONS

Bluetooth APP Enabled Operation

• Real-time Operation via Android, iOS and Windows App
• The POM®-5B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop)

Note

• Compatible with companion Apps available on Android, iOS and Windows
• Device MUST be equipped with BLE or purchased separately
• To save unlimited readings, POM®-5B MUST be connected to device

Unlimited Data Logging Capabilities in Real Time

With POM®-5B you will be able to create unlimited real time records of oxygen levels for critical welding applications

• The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
• Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
• The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv

Intelligent Color Notification System

• This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error
• Eliminate guesswork as Alarms can be set to desired O2 PPM value
• Acceptable oxygen levels can be customized to the user specifications

Factory Calibrated and Certified

• The POM®-5B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
• Meets requirements specified by the National Institute of Standards and Technology

2 Point Calibration Model:

• Calibrates using ambient air and 99.999% Argon

PRO OX®-100 KIT PROGRAMMABLE DIGITAL OXYGEN MONITOR

Types & Sizes

PRO OX-100 Kit Programmable Digital Oxygen Monitor
