Showing 28 results
thumbnail-img

Traditional Design

  • Constructed from high quality 316L stainless steel, one of the most common stainless steels used in the industry
  • Known as the “marine grade” due to its increased resistance to chloride corrosion
  • Provides the 1/16” (1.6 mm) minimum gap required by ANSI 31.1, Section III, ASME, US Navy and Military codes
  • Spring tension holds rings securely in place
  • Hollow center enables viewing during welding
  • Becomes permanent part of the joint

Increases Efficiency and Savings

  • Time and labor intensive tasks of scribing, measuring and fitting are completely eliminated
  • Weld accuracy is dramatically improved vs. manual processes
  • Eliminate and reduce cracked welds, saving money on costly repairs and replacement material

Types & Sizes

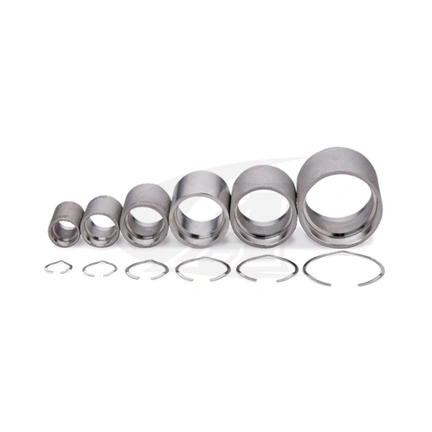

SteelSpace® Certified 316L Stainless Steel Socket Weld Spacer Ring

Item No DIMENSIONS THICKNESS DIAMETER Packaging
  English (IN) English (IN) NOMINAL (DN)
STS-0.375 3/8″ 1/16″ 10 25 Per Bag
STS-0.5 1/2″ 1/16″ 15 25 Per Bag
STS-0.75 3/4″ 1/16″ 20 25 Per Bag
STS-1.0 1″ 1/16″ 25 25 Per Bag
STS-1.25 1 1/4″ 1/16″ 32 25 Per Bag
STS-1.50 1 1/2″ 1/16″ 40 25 Per Bag
STS-2.0 2″ 1/16″ 50 25 Per Bag







thumbnail-img

Conforms To AWS Code

  • SoluShim SS-2-38-16 and SS-4-38-16 provide 1/8″ minimum gap for plate/pipe projects as required by AWS Code D1.6/D1.6M Stainless Steel Structural Code, eliminating need for measurement and guesswork

Experience Contaminant-Free Welding

  • Made from EPA Approved Aquasol Water Soluble Composite Board
  • 100% biodegradable and environmentally friendly
  • Compatible with any metal
  • Highly durable, incompressible, pre-sized and uniform in thickness
  • Flexible structure can be manually shaped to form any angle with ease

Consistent Pipe & Seam Installation

  • Maintains required root gap during plate and pipe welding applications
  • Highly Incompressible
  • Eliminates holding rod while simultaneously welding
  • Eliminates root gap from shrinking with each tack weld
  • Sticks stay firmly in place throughout welding process

Simple Spacer Removal

  • Removal is fast and effortless using a light application of water to moisten and dissolve sticks, achieving a contaminant free weld
  • Leaves behind no harmful trace elements that can lead to post-weld contamination
  • Eliminates costly and timely post-weld grinding to remove metal spacers

Types & Sizes

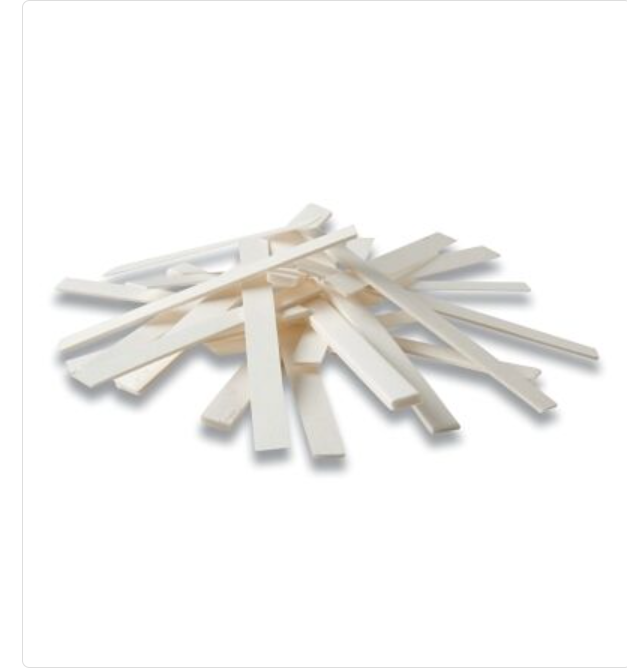

SoluShim Water Soluble Alignment Sticks

Item No Thickness Size Packaging Case Pack
  English Metric English Metric
SS-2-38-132 1/32" 0.8 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-16 1/16" 1.6 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-332 3/32" 2.0 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-18 1/8" 3.3 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-4-38-132 1/32" 0.8 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-16 1/16" 1.6 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-332 3/32" 2.0 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-18 1/8" 3.3 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)





thumbnail-img

Safe, Durable and Ready to Use

  • SoluTubes eliminate direct handling of surfactants. Soaps and detergents should be handled with caution.
  • SoluTube is a durable water soluble paper covering, minimizing stick breakage during transport
  • SoluTube, composed of Aquasol Water Soluble Paper, is EPA approved

Biodegradable

  • SoluTubes are made of Sodium Carboxy Methyl cellulose and wooden pulp, non-toxic and biodegradable compounds that leave no residue in the well.

Efficient and Economical

  • Eliminate using expensive well service operations such as swabbing, jetting with coiled tubing, or installing artificial lift and siphon strings.
  • Normally dissolve in 20 to 80 minutes depending on temperature, salt content, and relative water motion in the well.
  • Can dissolve in as little as 5 to 15 minutes depending upon the substance encased

Simple Storage Requirements

  • Will not dissolve while in cool, dry and ventilated storage

Types & Sizes

SoluTube

Sizes

SoluTube Soap sticks range in size from 3/4″ to 2″ in diameter. Smaller size soap sticks are used when minimal amounts of surfactant are needed.

Types of Surfactants

Soap sticks can be made of one surfactant or a blend of surfactants. All soap sticks are used to remove water and condensate from gas wells and increase gas production. Consult with your soap stick manufacturer to create or select the blend that meets your specific needs (temperature resistance, volume of water, etc.).

Packaging

Soap sticks are packaged in plastic chests, plastic tool boxes, cardboard cartons and drums.

thumbnail-img

Cost Effective and Convenient

  • More convenient and safer to use than traditional solution and rags
  • Provides a one-step controlled application allowing welders to maximize time spent welding and diminish time spent cleaning
  • Single pouch provides a quick, convenient and effective method to clean almost any surface

Green, Eco Friendly Formulation and Material

  • Unique eco-friendly formula contains Limonene, a natural solvent
  • CFC & HCFC free and possess no serious threats to the environment
  • Can be thrown away with regular trash; no special disposal is needed
  • Contain a highly effective liquid blend for maximum cleaning power
  • Can be used after removing slag with a wire brush to ensure all impurities are removed from the pipe’s surface

Ideal for Various Surfaces

  • Titanium
  • Stainless Steel
  • Chromium
  • Pipes
  • Machinery
  • Tools
  • Car Parts
  • Workbenches
  • Vinyl
  • Many Others

Aggressive Cleaning Action

  • Feature specialized two-sided cleaning fabric
    • Abrasive side loosens dried on surface contaminants
    • Smooth side reveals a cleaner, polished surface

Removes a Variety of Contaminants

  • Lubricants
  • Oils
  • Grease
  • Marker
  • Inks
  • Loose particles
  • Tar
  • Wax
  • Paints
  • Caulk
  • Sealants
  • Epoxies
  • Heavy grease
  • Adhesives
  • Other contaminants

Types & Sizes

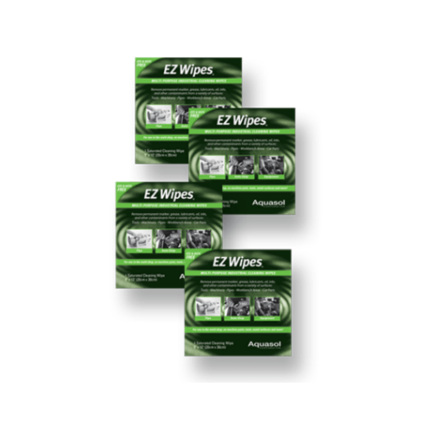

EZ Wipes

Item No. Description Dimensions Case Pack
    ENGLISH METRIC
EZW-ONE Two-sided saturated cleaning wipe sheet 8″ x 12″ 20 x 30 cm 500 pieces
